1000ml Automatic Packaging Machine For Chips / Snacks / Frozen Shrimp

Product Categories

Automated Packing Machine [179]
Multihead Weigher Packing Machine [78]
Vertical Packaging Machine [57]
Vertical Form Fill Seal Machine [50]
Food Packing Machine [88]
Powder Packaging Machine [106]
Granule Packing Machine [52]
Volumetric Packing Machine [30]
Auger Filler Packing Machine [14]
Liquid Packaging Machine [53]
Linear Weigher Packing Machine [20]
Sachet Packing Machine [57]
Semi Automatic Packaging Machine [26]
Packing Machine Accessories [20]

Foshan Suntech Machinery Co., Ltd.

Contact Now

Frozen Shrimp

Ask Lasest Price
Brand Name :	SunChon
Model Number :	SUN-420W
Certification :	CE Certification
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash
Supply Ability :	200 Sets per month
Delivery Time :	Within 20 days

Add to Cart

Product Details
Company Profile

1000ml Automatic Packaging Machine For Chips / Snacks / Frozen Shrimp

Ce marked Automatic packaging machine for chips /snacks frozen shrimp packaging machine

-It’s widely used in food industry, chemical industry and others.
-It has stable performance, easy operation, and PLC control.

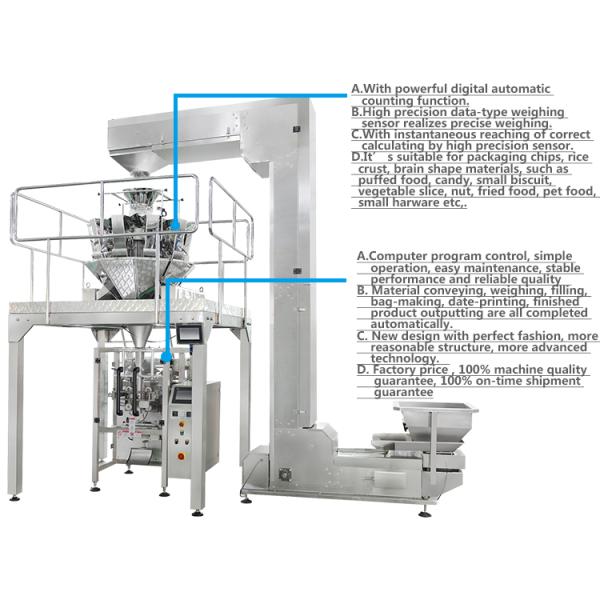

-The whole set of machine consists of hoisting machine, multi-head weigher, vertical packing machine and conveyor.
-With date printing

Machine Parameters

VFFS Machine SUN-520	Packing Speed	5-60 Bags/Min
	Volume	2000ML
	Bag Width	150-250 MM
	Bag Length	80-400 MM
Packaging Film	Max Width	520 MM
	Thickness	0.04-0.09 MM
	Material	OPP/CPP PET/PE PET-AL/PE Lamination Film
VFFS Machine	Weight	550 Kg
	Air Consumption	0.8Mpa 0.4m³/Min
	Power Supply	2.2Kw 220V 50Hz
	Dimension LxWxH	1500x11400x1540 MM

Main Features

1. This machine adopts correcting system controlled by microcomputer, owing to a response signal is handle and set pass through microcomputer it can accomplish whole set to synchronization, sack length, position fixing, voluntarily follow the tracks of light-mark and voluntarily diagnose trouble and show to screen.
2. This machine can automatically complete a series of actions, such as bag making, the measuring,filling, inflating, counting, sealing, code printing, material giving, stopping in certain quanting, fixed-bag cutting and same cutting.
3. Suitable for package of foodstuff, seasoning, medicine (For example:ncutlet, peanut, tea, candy,non-sticky powder and so on.)

4. Fully controlled by Siemens or Omron PLC & Touch-Screen.

Sample bags
